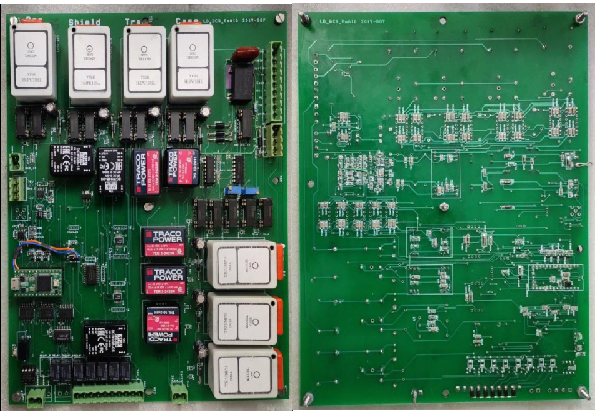

Control Card for Mass Spectrometer

Communication Interface RSA232 and RS485 bus with upto 57600bps rate
Software protocol for communication Modbus read and write multiple holding registers
3 0 to 500V outputs w.r.t ground with Set and monitor resolution of 12 bit
1 0 to -2000V output w.r.t ground with Set and monitor resolution of 12 bit
3 0 to 200V ﬂoating output (ﬂoating on potential up to 1KV) ripple
<50mV with Set and monitor resolution of 12bit
1 0 to -200V ﬂoating output (ﬂoating on potential up to 1KV) ripple
<50mv with Set and monitor resolution of 12bit
Current regulator 0- 8A ﬂoating on potential upto 1KV with Set and monitor resolution of 10bit
Emission Regulator 0-5mA ﬂoating on potential upto 1KV with Set and monitor resolution of 12bit
8 digital o/p (Potential free contacts)
Power Supply voltage (Input voltage) 24V ± 10%
±15V and +5V output (tolerance < ± 3%)
Set and Read of all above parameters over a communication Interface RSA232 and RS485 bus with upto 57600bps rate
One 0 to 5V analog i/p with 16 bit resolution
All outputs with short circuit and overload
Dimension < 212mm(W) * 266mm (L) * 24mm (H)
